BLACK-Comet UV-VIS Spectrometer
with Research Grade Concave Grating Optics



Research Grade
Concave Grating Spectrometer Features



  • Measurements in the 190-850nm or 280-900nm ranges

  • High performance concave grating optics for UV-VIS applications

  • Superb spectral imaging with no mirrors for lowest possible stray light

  • Enhanced UV Sensitivity & Flat-field imaging for uniform resolution

  • No optical adjustments for extreme thermal stability and ruggedness

  • Thermo-electrically Cooled Detector (TEC) upgrade increases S/N by 60%

  • BLACK-Comet-SR (Super Range) for wide range applications 200-1100nm

  • BLACK-Comet-HR (High Resolution) for high resolution applications <0.4nm

Standard Models

BLACK-Comet



BLK-C

BLK-CXR

Wavelength Range (nm)

190-850

280-900

Grating
g / mm

590

590

Slit-200
nm res.

6.0

6.0

Slit-100
nm res.

3.0

3.0

Slit-50
nm res.

1.5

1.5

Slit-25
nm res.

0.85

0.85

Slit-14
nm res.

0.75

0.75

Specifications

Dimensions:

Power Consumption:

Interface:

Data Transfer Speed:

Detector Integration:

Slit Size Options:

Stray Light:



Fiber Optic Input:

Operating Systems:

Software Included:

Also Free Programs For:

69 x 100 x 150 mm

100 mA @ 5 VDC



USB-2

3x / 40x faster than USB-1



1 ms to 65 s



14, 25, 50, 100, 200 um

0.02% at 435 nm; 0.2% at 200 nm

SMA905 0.22 na single fiber

Win XP, Vista, 7, 8, & 10

SpectraWiz program & apps

LabView / VC / VBA / Delphi

Dynamic Range:

Optical Resolution:



Detector Type:

Detector Range:



Pixel Size:

Concave Grating:

Grating Type:

Spectrograph:

Order Sorting Filter:

Signal to Noise:

Digitizer:

2000:1 with 6 decades

< 1 nm Resolving Res. with  25um slit

2048 pixel CCD, PDA opt.

C=190-850nm or CXR=280-900nm

14 um x 200 um

Aberration corrected

Holographic, 590 g/mm

f/2, Flat field - No mirrors

Integrated multi-band

1000:1 CCD, PDA 2000:1

16-bit



BLACK-Comet-SR Spectrometer
with Research Grade Concave Grating Optics

Super Range
Concave Grating Spectrometer

  • Measurements in the 200-1080nm or 220-1100nm range

  • Concave grating optics for high performance applications

  • Super Range concave grating with dual blaze for best sensitivity

  • Enhanced spectral imaging with no mirrors for lowest possible stray light

  • Flat field imaging for uniform resolution

  • No optical adjustments for extreme thermal stability

  • TEC upgrade now available for 2016! Increases S/N by 60%

  • Concave gratings white paper

Super Range Models

BLACK-Comet



BLK-C-SR



BLK-CXR-SR

Wavelength Range (nm)

200-1080



220-1100

Grating
g / mm

Dual Blaze Concave

Dual Blaze Concave

Slit-200
nm res.

8.0



8.0

Slit-100
nm res.

4.0



4.0

Slit-50
nm res.

2.0



2.0

Slit-25
nm res.

1.5



1.5

Slit-14
nm res.

1.3



1.3

Specifications

Dimensions:

Power Consumption:

Interface:

Data Transfer Speed:

Detector Integration:

Slit Size Options:

Stray Light:



Fiber Optic Input:

Operating Systems:

Software Included:

Also Free Programs For:

69 x 100 x 150 mm

100 mA @ 5 VDC



USB-2

3x / 40x faster than USB-1



1 ms to 65 s



14, 25, 50, 100, 200 um

0.02% at 435 nm; 0.2% at 200 nm

SMA905 0.22 na single fiber

Win XP, Vista, 7, 8, & 10

SpectraWiz program & apps

LabView / VC / VBA / Delphi

Dynamic Range:

Optical Resolution:

Detector Type:

Detector Range:

Pixel Size:

Concave Grating:

Grating Type:

Spectrograph:

Order Sorting Filter:

Signal to Noise:

Digitizer:

2000:1 with 6 decades

 see above

2048 pixel CCD, PDA opt.

200-1080 nm or 220-1100 nm

14 um x 200 um

Aberration corrected

Holographic, 590 g/mm

f/2, Flat field - No mirrors

Integrated multi-band

1000:1 CCD, TEC Options

16-bit



BLACK-Comet-HR Spectrometer
with Research Grade Concave Grating Opticsa

High Resolution
Concave Grating Spectrometer

  • Measurements in the 200-600nm or 380-750nm ranges

  • Resolutions as low as 0.4nm with high performance concave grating optics

  • Perfect spectral imaging with no mirrors for lowest possible stray light

  • Flat field imaging for uniform resolution

  • No optical adjustments for extreme thermal stability

Super Range Models

Slit-14
nm res.

0.4

0.4

BLACK-Comet



BLK-C-HR-UV

BLK-C-HR-VIS

Wavelength Range (nm)

200-600

300-750

Grating
g / mm

590

590

Specifications

Dimensions:

Power Consumption:

Interface:

Data Transfer Speed:

Detector Integration:

Slit Size Options:

Stray Light:



Fiber Optic Input:

Operating Systems:

Software Included:

Also Free Programs For:

69 x 100 x 150 mm

100 mA @ 5 VDC



USB-2

3x / 40x faster than USB-1



1 ms to 65 s



14, 25, 50, 100, 200 um

0.02% at 435 nm; 0.2% at 200 nm

SMA905 0.22 na single fiber

Win XP, Vista, 7, 8, & 10

SpectraWiz program & apps

LabView / VC / VBA / Delphi

Dynamic Range:

Optical Resolution:

Detector Type:

Detector Range:



Pixel Size:

Concave Grating:

Grating Type:

Spectrograph:

Order Sorting Filter:

Signal to Noise:

Digitizer:

2000:1 with 6 decades

< 0.4nm Resolving Res. > 14um slit

2048 pixel CCD, PDA opt.

UV=200-600nm or VIS=350-750nm

14 um x 200 um

Aberration corrected

Holographic, 590 g/mm

f/2, Flat field - No mirrors

Integrated multi-band

1000:1 CCD, PDA 2000:1

16-bit

BLACK-Comet Optics- The concave holographic grating is aberration corrected and has no mirrors to minimize stray light with superb imaging projecting a flat field on the detector

StellarNet BLACK-Comet concave grating spectrometers deliver high performance for spectroscopy applications in the UV-VIS wavelength ranges covering 190-850nm (model C), or optionally 280-900nm (model CXR)

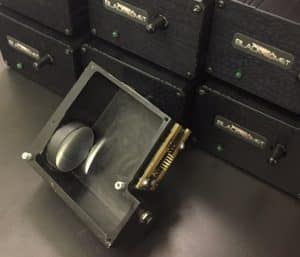

Research Grade Optical Performance – The BLACK-Comet UV-VIS spectrometers utilize a 40mm diameter concave grating with aberration correction to provide the best optical performance of any compact spectrometer on the market.


Improved spectral shapes by reducing comma and astigmatism found in plane grating spectrograph designs.
Stray light reduction - The spectrograph architecture does not utilize mirrors, and therefore provides the lowest possible stray light, which is especially helpful for UV applications.
Enhanced sensitivity - due to the spectrometers ability to reduce light scatter, especially high power UV light, the BLACK-Comet provides two to three times enhanced UV sensitivity as compared to plane grating/Czerny Turner optical configurations.
Uniform resolution – The concave grating produces a flat field on the CCD detector creating uniform resolution over the entire spectral range.
Thermal Stability - Optical bench architecture without mounting turrets and optical posts (typically in most USB spectrometers) decreases thermal expansion and contraction and increases overall system performance with temperature change


Various models provide a choice of wavelength range and slit resolutions. New and improved electronics with a high speed 16-bit digitizer allows for fast data acquisition and a signal to noise of 1000:1!

Ruggedized –  The detachable spectrograph assembly and control electronics are protected inside a rugged metal enclosure, suitable for portable, process, lab, and field applications.


Multi-unit connection (up to 8) can be daisy chained together and are able to run simultaneously.


USB Powered – BLACK-Comet UV-VIS spectrometers can be powered directly from your PC’s USB-2 port. A single strand fiber optic cable or probe assembly delivers input via standard SMA 905 fiber optic connector with a choice of cable lengths.


Onboard Memory with pre-set calibrations and spectrometer settings and snap shot memory to provide instantaneous spectral image from the highly sensitive CCD with 2048.


High Speed Electronic Interface can be attached directly to a computers USB port for high speed data transfer.  Options for Wifi/ethernet communication available as well as other interfaces.
