RED-Wave-NIRX-SR EXtended Range NIR Spectrometers

EXtended Range NIR Spectrometer

  • Measurements from 900-2300nm (0.90-2.30 um)

  • For NIR measurements and applications requiring wide spectral range

  • 512 or 1024 pixel extended range InGaAs Photo Diode Array

  • Integrated 2-stage thermo electric cooler set to operate at -30 deg C

  • Design enhancements increase air flow and utilize a specialized heat sink for added stability



Standard Models

Number of Element



512

1024

Wavelength Range (nm)



900-2300

900-2300

Grating
g / mm



300

600

RED WAVE



NIRX-SR

NIRX-SR

Grating Range(nm)



1400

1400

Dispersion

(nm/pixel)

5.3

2.7

Estimated Resolving Resolution

<13nm

<7nm

Specifications

Dimensions:

Power Consumption:

Interface:

Data Transfer Speed:

Detector Integration:

Slit Size Options:

Fiber Optic Input:

Operating Systems:

Software Included:

Also Free Programs For:

150 x 100 x 68.8 mm

2 Amps @ 5 VDC



USB-2 and Parallel

40x faster than USB-1



1 millisecond to 200ms



25um for optimum performance

SMA905 0.22 na single fiber

Win XP, Vista, 7, 8, & 10

SpectraWiz program & apps

LabView,Excel+VBA,Delphi

Dynamic Range:

Resolving resolution:

InGaAs Detector:

Detector Range:

Pixel Size:

Pixel well depth:

Selectable well control:

Signal to Noise:

Digitizer:

4000:1 with 6 decades

13nm with 25μm slit

512 or 1024 pixel cooled PDA

0.9-2.3μm   (900-2300nm)

25um x 250um

130 x10^8 electrons

130 x10^8  or  5 x10^6 el.

12000:1 with 2x TEC cooling

16-bit

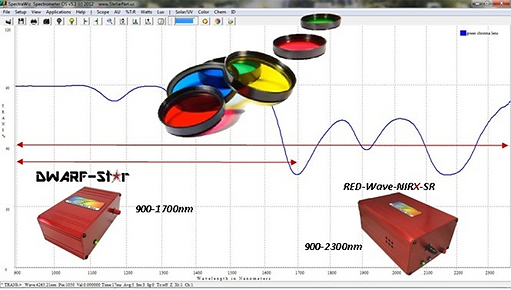

Lens, filters, films, coatings, and plastics sometimes will have interesting characteristic fringe patterns in the far NIR. Be sure to test your samples!

Range 900-2300nm
StellarNet’s high performance InGaAs extended range spectrometers cover the NIR wavelength range from 0.9-2.3μm in one unit. The spectrometers are exceptionally robust with no moving parts and are packaged in small rugged metal enclosure (2.75” x 4” x 6”) for portable, processes, and lab applications. The InGaAs detector is a Sensors Unlimited linear photo diode array with 512 pixels (1024 optional) 25μm by 250μm tall to provide best signal performance. The detector has an integrated two-stage thermo electric cooler (TEC) maintained at –20 °C, stabilized within +/-0.1°C. The RED-Wave-NIRX-SR-InGaAs spectrometers use single strand SMA 905 fiber optic input.
NIR applications include chemical ID and moisture analysis, SpectroRadiometry and optical power measurements, laser characterization, microsensor applications, and thicker thin-film measurements.

StellarNet RW Spectrometer 카타로그
